Solahart Collectors

Commercial Collectors

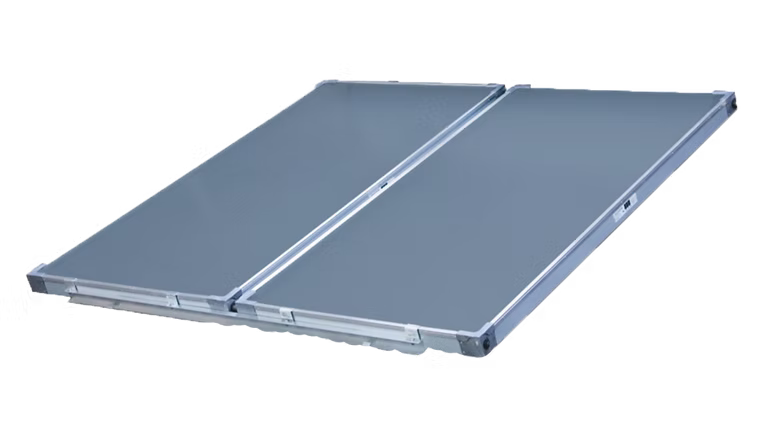

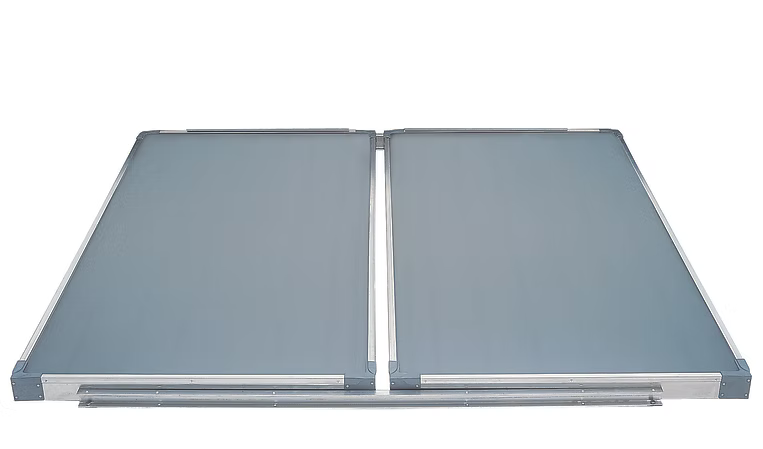

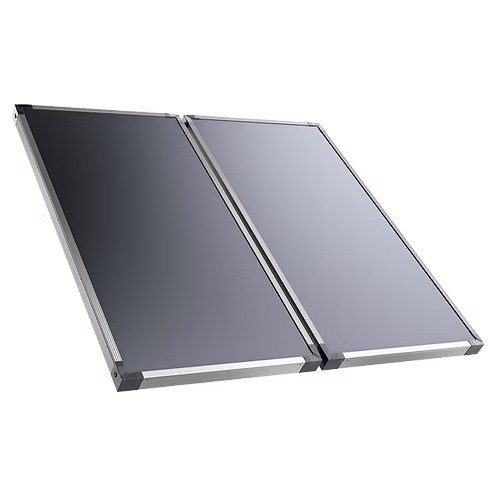

Solahart Flat Plate Collector are manufactured using extra strong, toughened glass that is resistant to breaking. This toughened glass provides a stronger, safer, more durable application than evacuated tube collectors. All Evacuated Tube collectors suffer from performance degradation due to loss of vacuum. Solahart Flat Plate Collectors are built to last and do not rely on a vacuum for their performance. There are many Solahart systems that are over 20 years old and still working, providing hot water day after day.

Key Features

The driving energy source for the system are the market-leading Solahart solar collectors. The range ensures there is a collector type suitable for almost every location on the planet. Each collector is constructed with an aluminium outer casing, lined with dense insulation to minimise heat losses. Low iron, tempered glass maximises the solar energy received by the absorber.

  • Copper risers header Pipe

  • Black Powder coat or Selective surface absorber

  • Laser welded (Absorber/riser)

  • Brass M33 female screw fittings with ‘O’ Rings

  • Polyester Blanket & Side Insulation

  • Tempered Low Iron Glass

  • Aluminium tray

  • Aluminium extrusion glazing trim

Technical Specifications

.. L Collectors LCS Collectors BPT Collectors
Aperture (heating) Area 1.87 m2
Dimensions
Length 1943 mm
Width 1027 mm
Height 83 mm
Capacity 1.2 litres
Weight*
Empty 29 kg 31 kg 29 kg
Full 32 kg 33 kg 32 kg
Working Pressure 1000 kPa
145 psi
Absorber Surface Black polyester powder coat Mirotherm sputtered selective surface Black polyester powder coat
Absorber Material Aluminium
Riser Material Copper Tube
Tray Material 0.7 mm Aluminium 0.45 mm Prepainted Steel
Insulation Material – Base 38 mm polyester blanket 38 mm glasswool blanket 38 mm polyester blanket
Glass 3.2 mm tempered low iron glass

* Weight includes fittings
